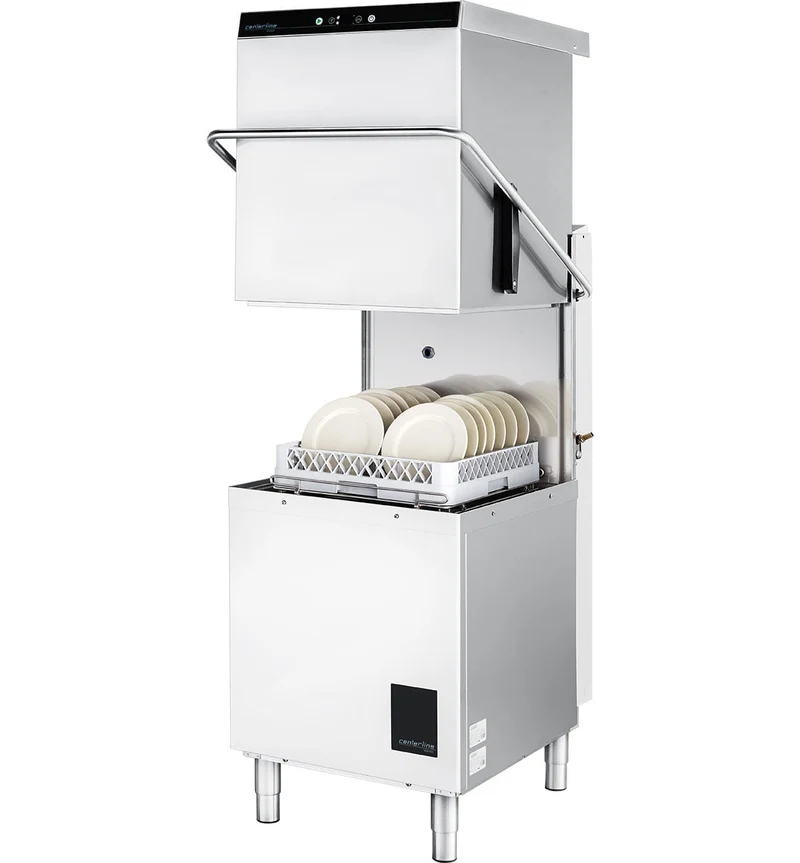

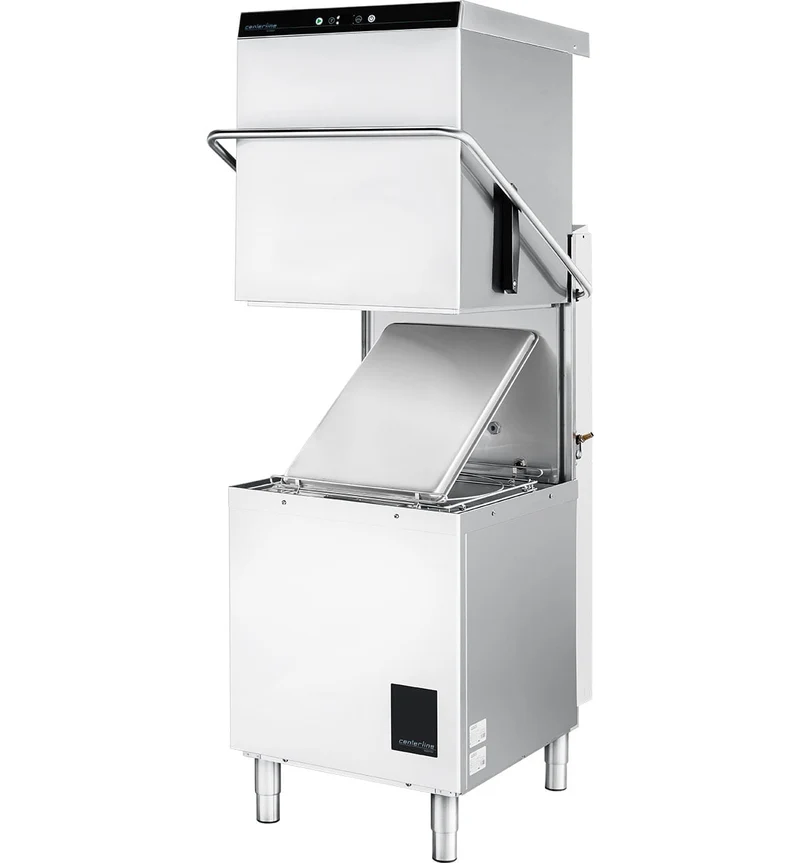

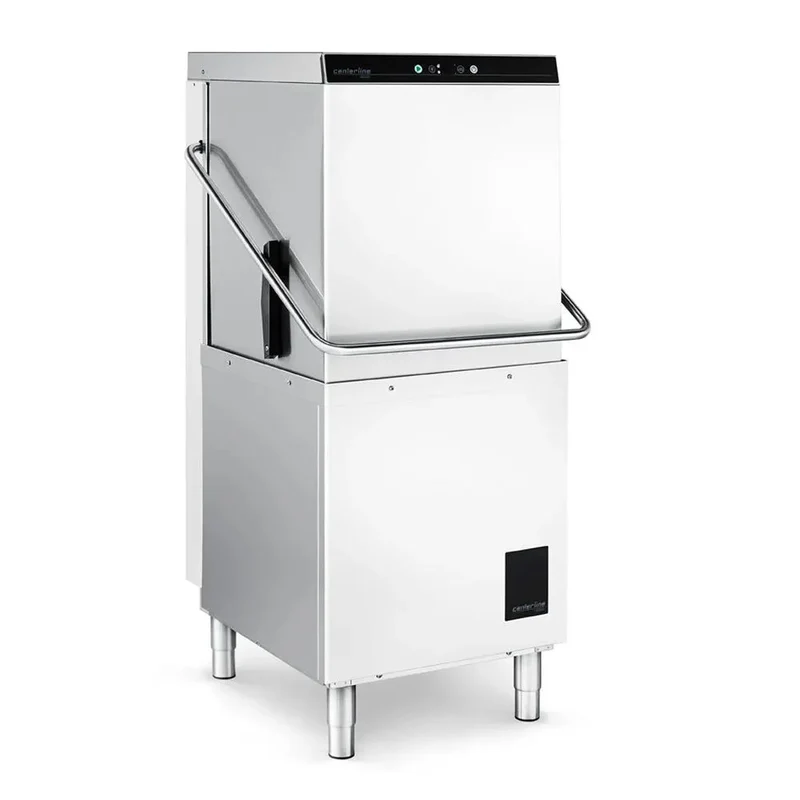

Centerline by Hobart CDH-1 High Temperature Dishwashing Machine - 51 Rack / Hour - 208-240V, 3 Phase

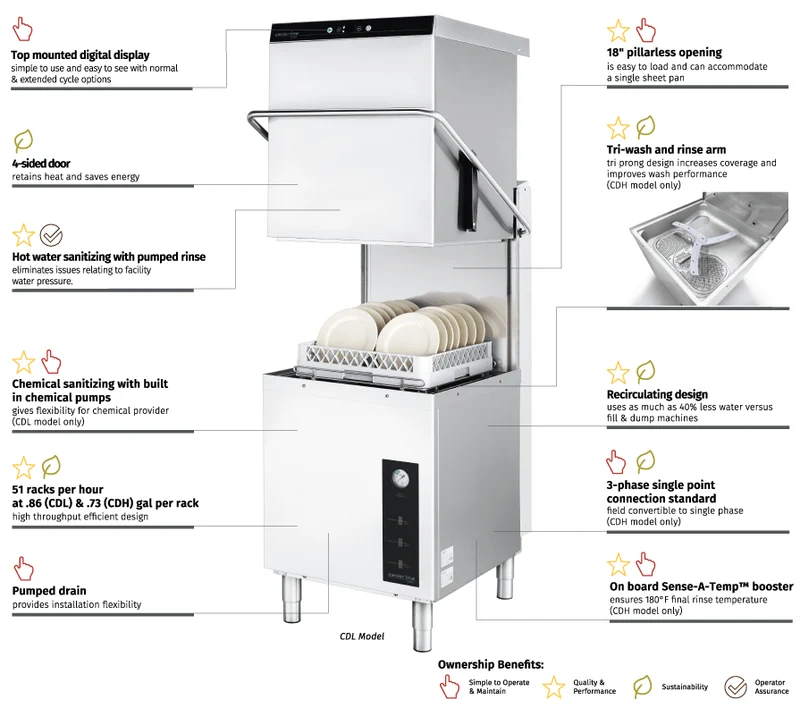

• Designed for busy kitchens, the Centerline by Hobart CDH-1 electric high temperature door-type dishwasher with booster-heater 208-240V delivers convenience and reliability. Within one hour, it washes up to 51 racks, with each rack using 0.73 gallons of water, using a standard cycle that can be extended

  • .51 racks per hour

  • .73 gallons of water per rack
• High temperature sanitizing
• Recirculating design
• Top-mounted user interface with digital temperature display
• 18″ pillarless door opening
• Delime notification and cycle
• Electric tank heat
• Straight through or corner installation
• Soft start
• Automatic pumped drain
• Automatic fill
• Service diagnostics with error notifications

Specifications
Model	CDH-1
Width	24.12 Inches
Depth	29.81 Inches
Height with Door Open	82.06 Inches
Height with Door Closed	62.93 Inches
Voltage	208V - 240V
Hertz	60 Hz
Phase	3 ph
Rated Amps	35 Amps
Wash Pump Motor Horsepower	0.80 hp
Tank Capacity	30 L
Racks Per Hour	51
Water Per Rack	0.73 gallons
Wattage	6.5 kW
Heating Unit Wattage	5 kW
Water Connection	3/4 Inches
Drain Connection	19 mm Barb Fitting
Installation	Straight-Through or Corner
Power Type	Electric

Files

• PDF Spec Sheet
